CYFLWYNIAD:

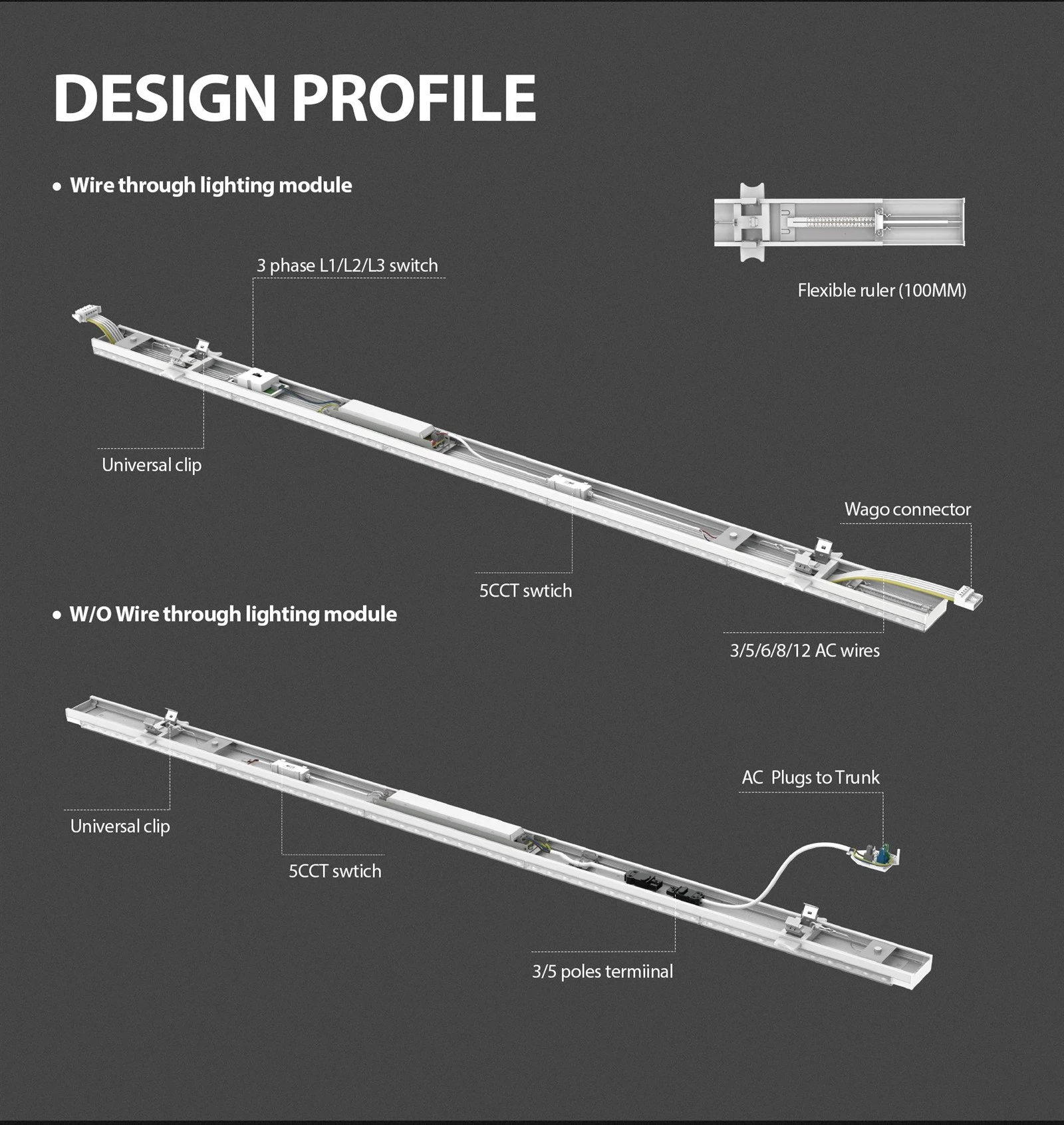

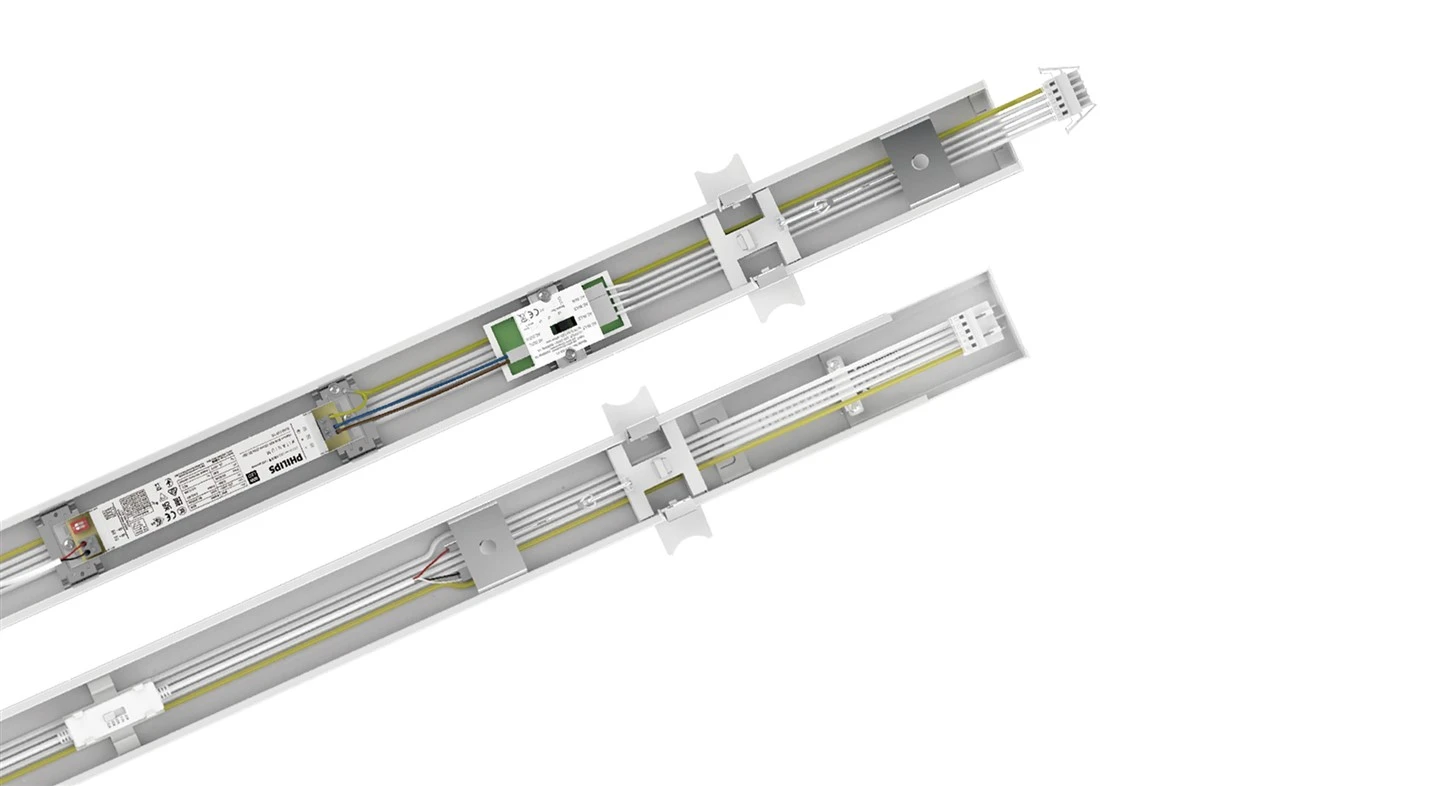

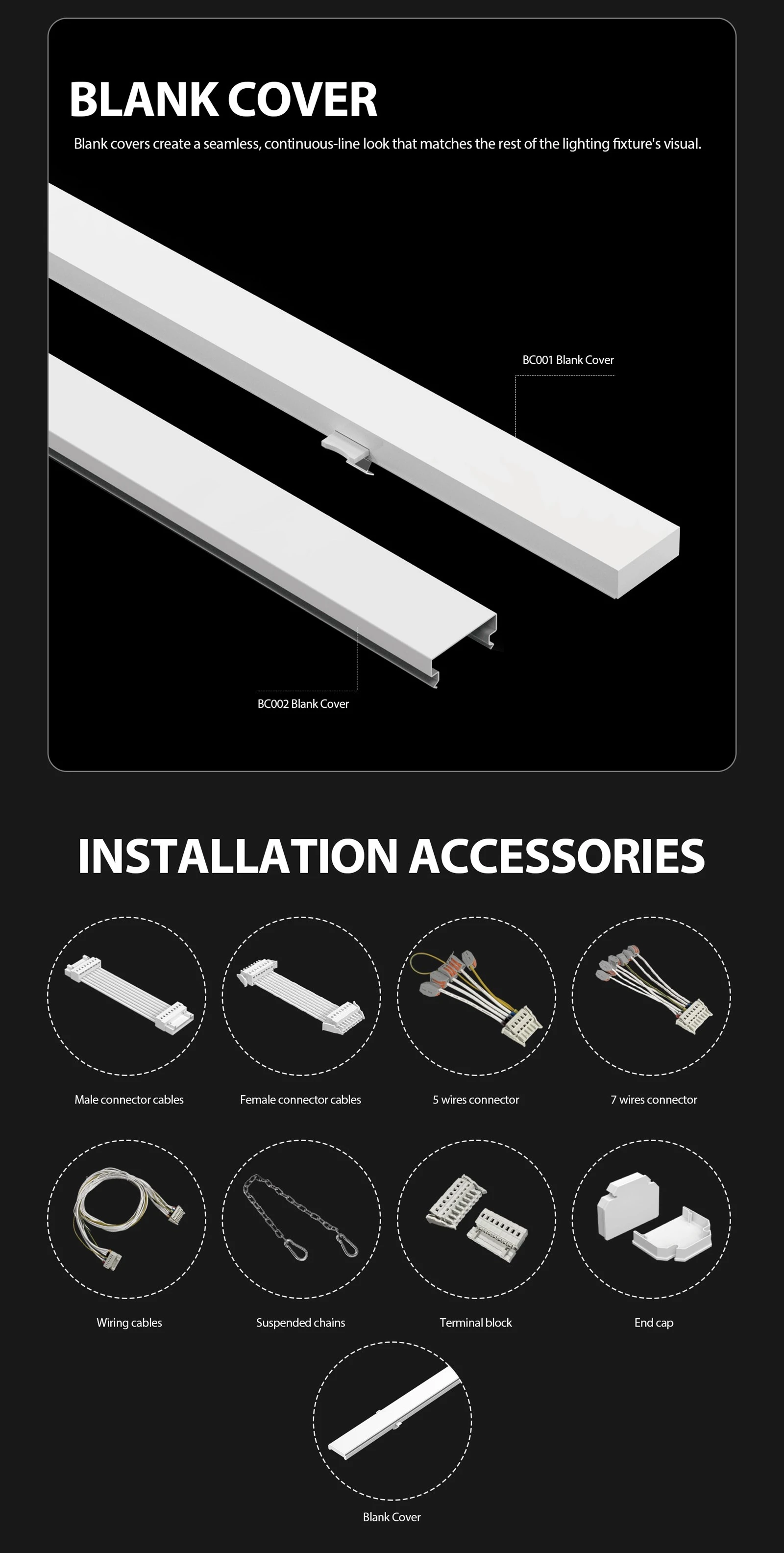

Mae Retro Flex yn dod â set o wifrau cysylltu â gwifrau ymlaen llaw, sy'n ei gwneud yn gwbl annibynnol ar asgwrn cefn y gosodiad. Mae terfynell cysylltiad WAGO yn darparu ffordd gyflym a hawdd o gysylltu modiwl ar ôl modiwl. Mae'r fersiwn 5 gwifren ymlaen / i ffwrdd yn ogystal â'r fersiwn pylu 7-wifren yn cynnwys switsh llinell 3 cham â sgôr o 400V i greu amrywiaeth o senarios gosod.
EIDDO:

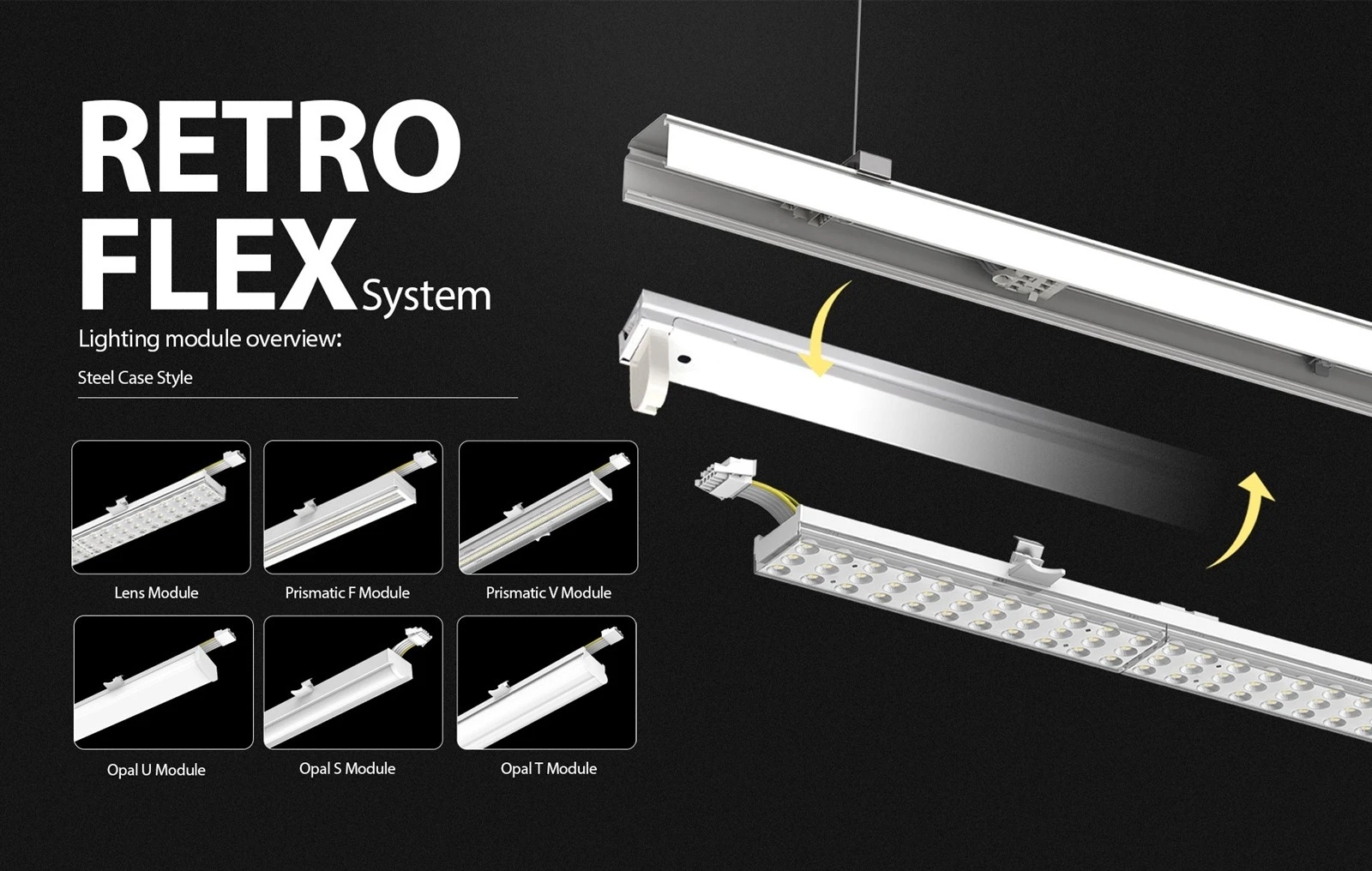

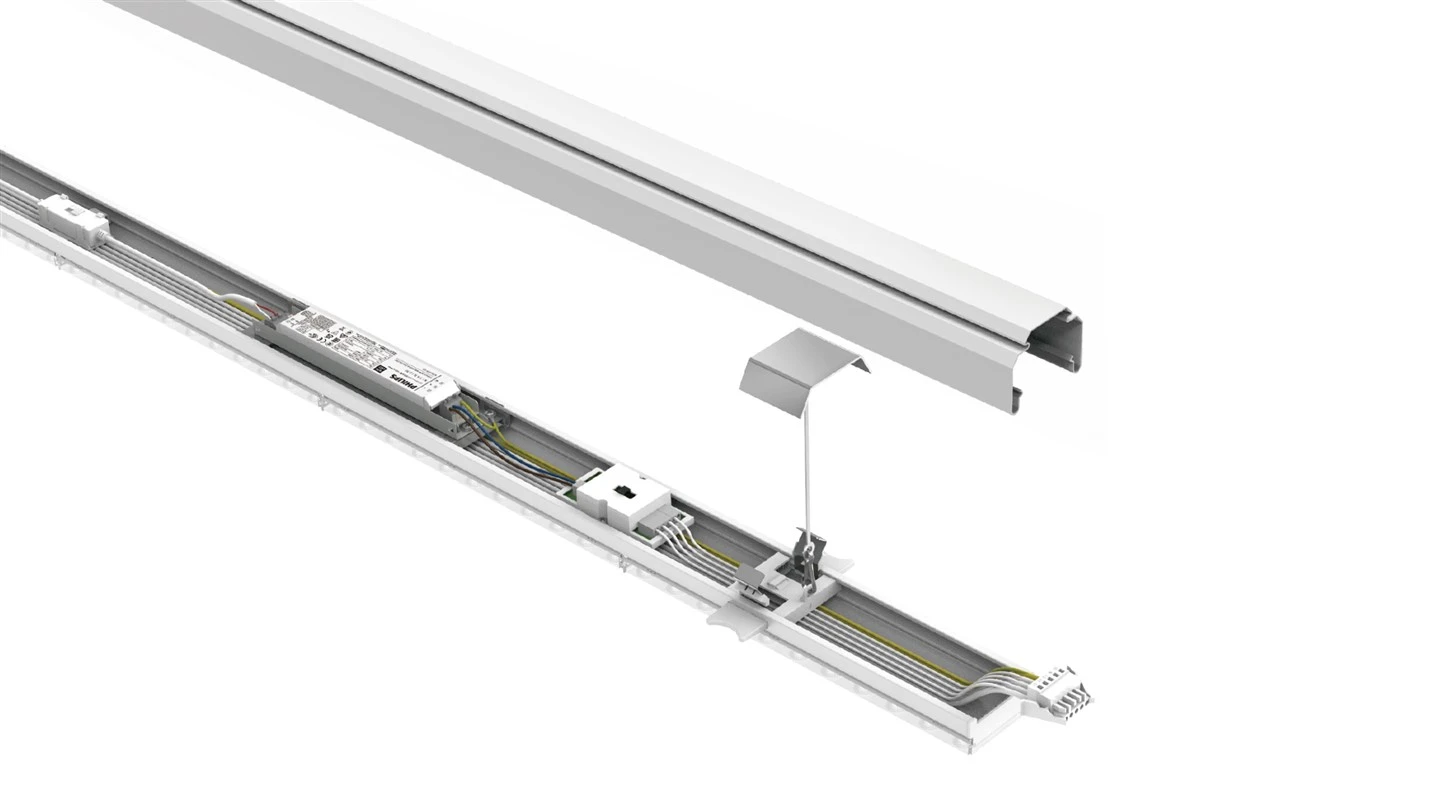

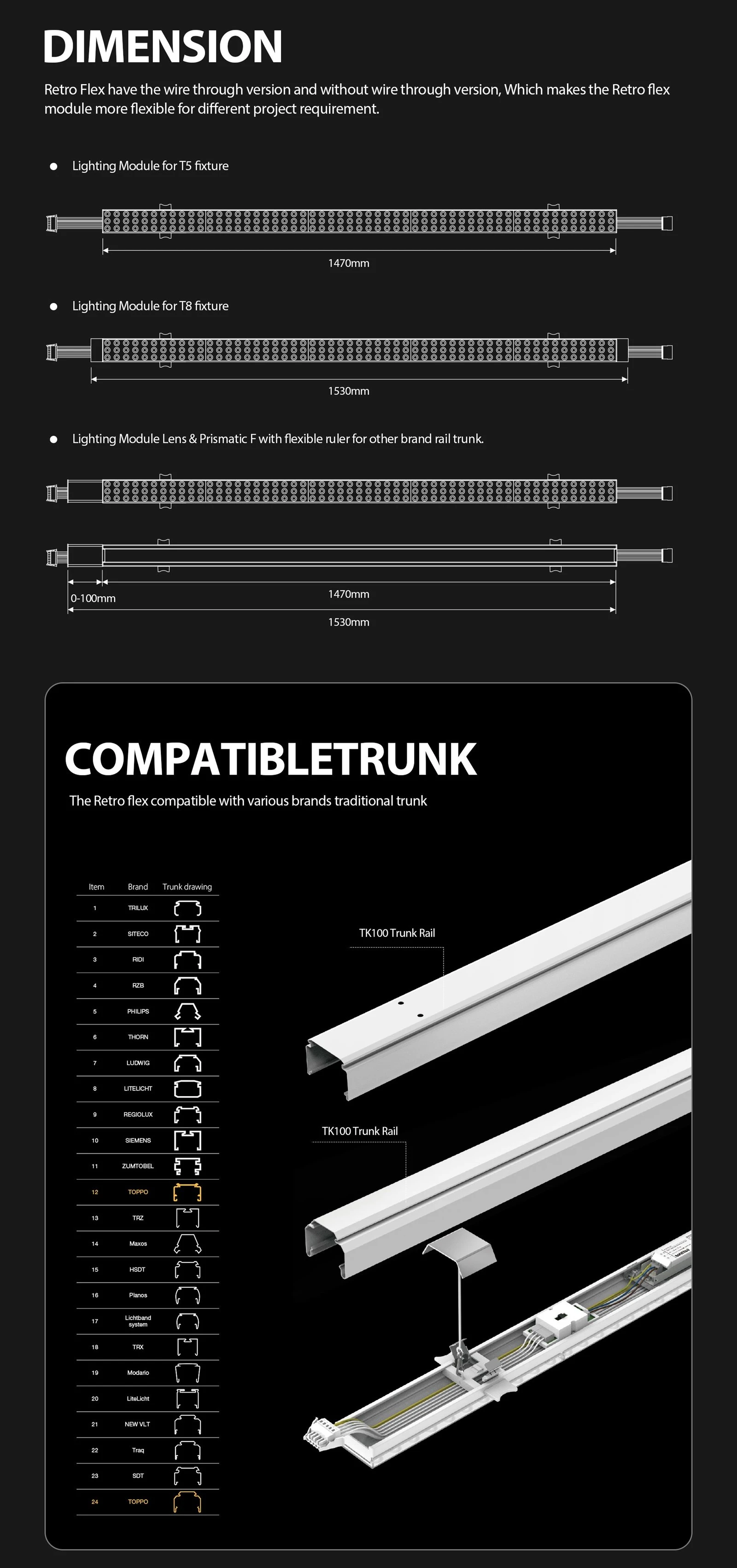

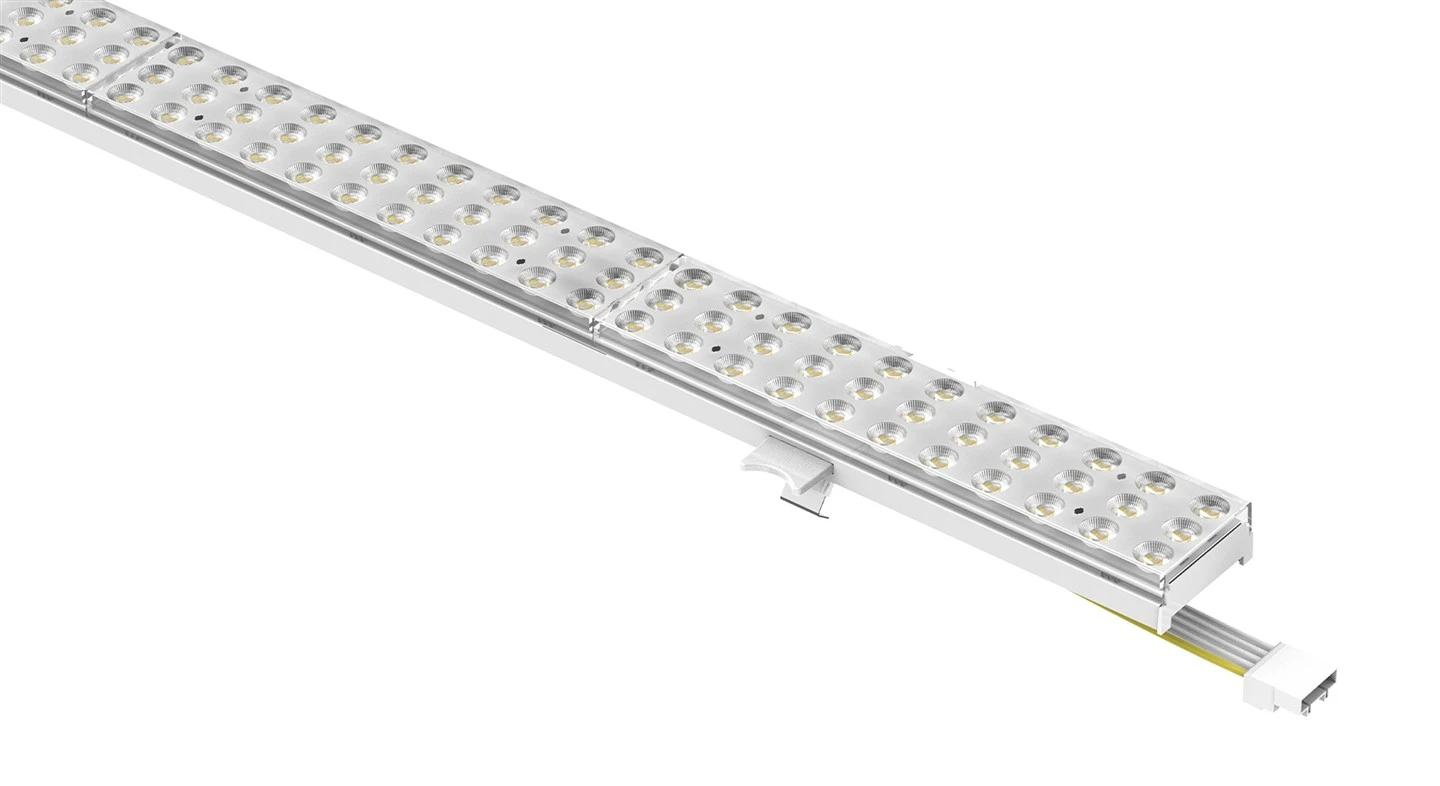

Daw Retro Flex gyda chlip smart ar fodiwl LED y gellir ei osod mewn blychau golau traddodiadol o wahanol frandiau fel: Philips, Trilux, Zumtobel, Siteco, Ridi a llawer mwy. Mae ei system clampio hyblyg a hunanganoledig yn caniatáu i'r modiwl hwn gael ei osod ar ystod eang o flychau golau.

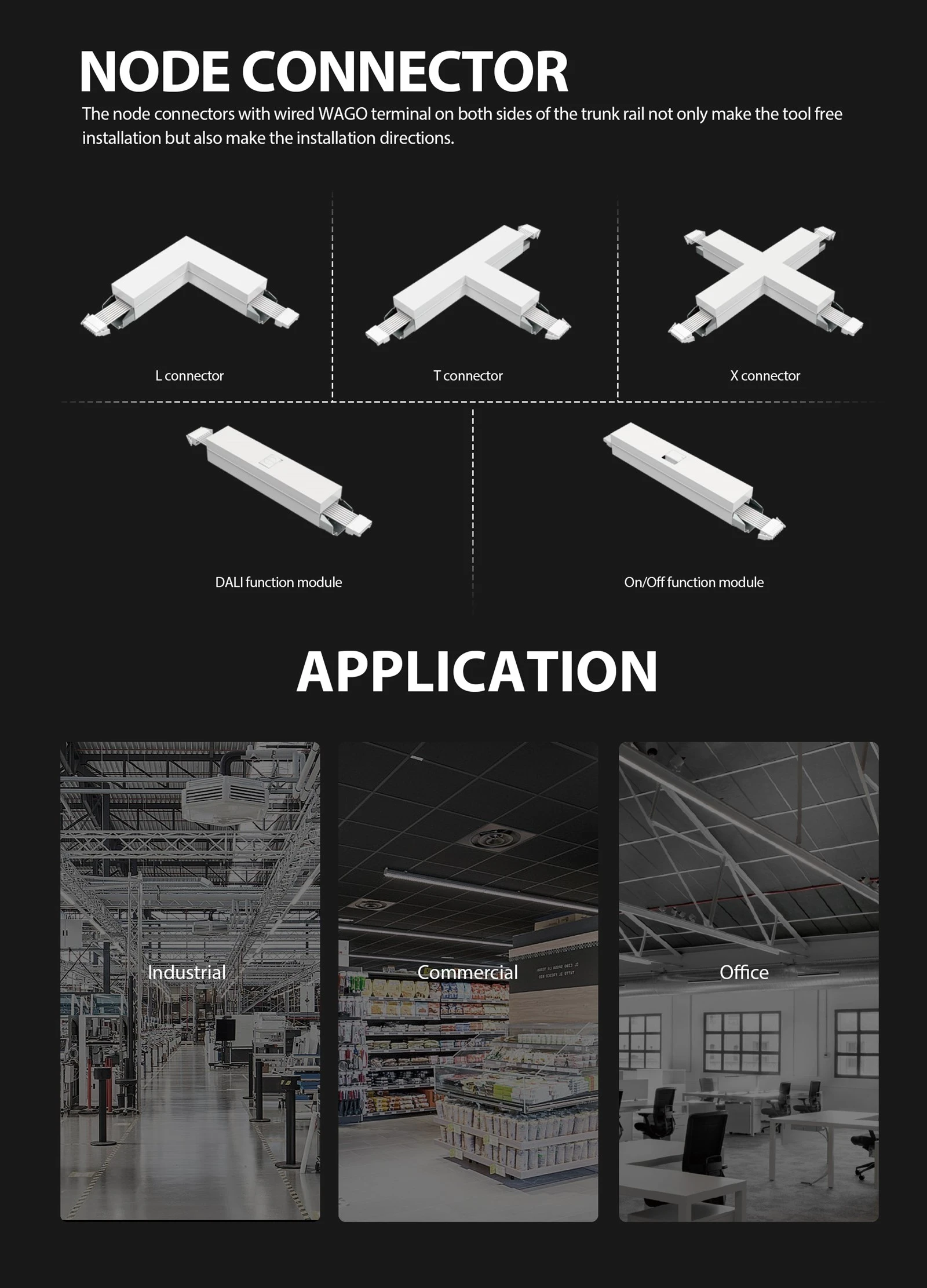

Beth yw'r gwahaniaeth rhwng fflwroleuol llinellol a goleuadau LED? Mae Retro Flex yn dod â'i set ei hun o wifrau cysylltiadau cyn-gwifredig, sy'n ei wneud yn gwbl annibynnol o'r boncyff y mae wedi'i osod ynddo. Mae terfynell gysylltu WAGO yn darparu ffordd gyflym a hawdd o gysylltu un modiwl i'r llall.
|
Gorchudd |
Cod Gorchymyn |
Pŵer â Gradd |
LM/W |
Lumen |
SDCM/Ra |
Dosbarth IP |
Dimensiwn Cynnyrch |
GW/CTN |
QTY/CTN |
|

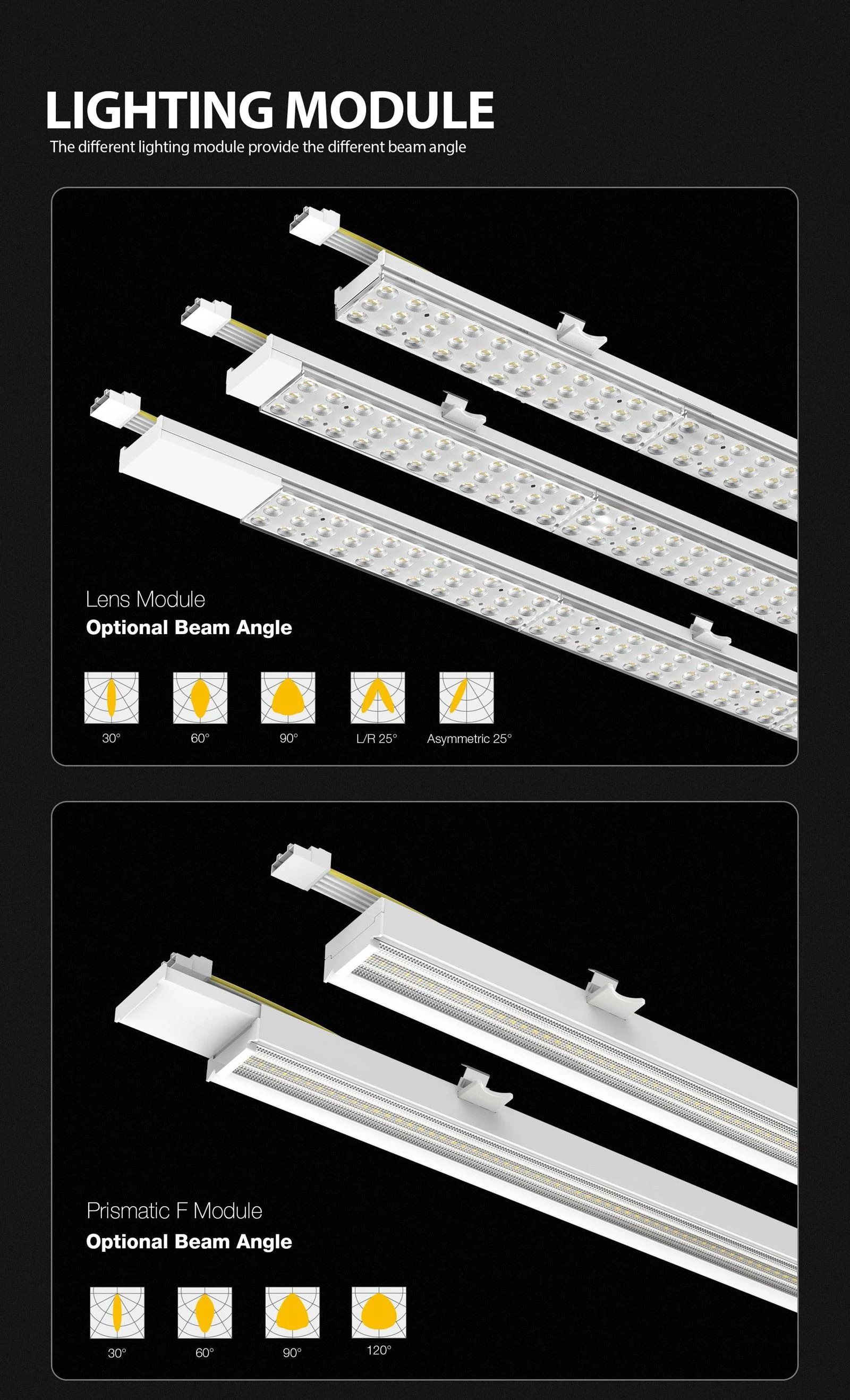

Optig lens |
RF100-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Optig lens |
RF100-05W-DT1-60F01 |
40-60W |
Typ.180 |
Teip.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Optig lens |
RF100-05W-DT1-70V01 |
50-70W |
Typ.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Optig lens |
RF100-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Optig lens |
RF100-05W-DT1-70D01 |
35-70W |
Typ.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|
Optig lens |
RF100-05W-DT1-75F01 |
35-75W |
Typ.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5kg |
6pcs |
|

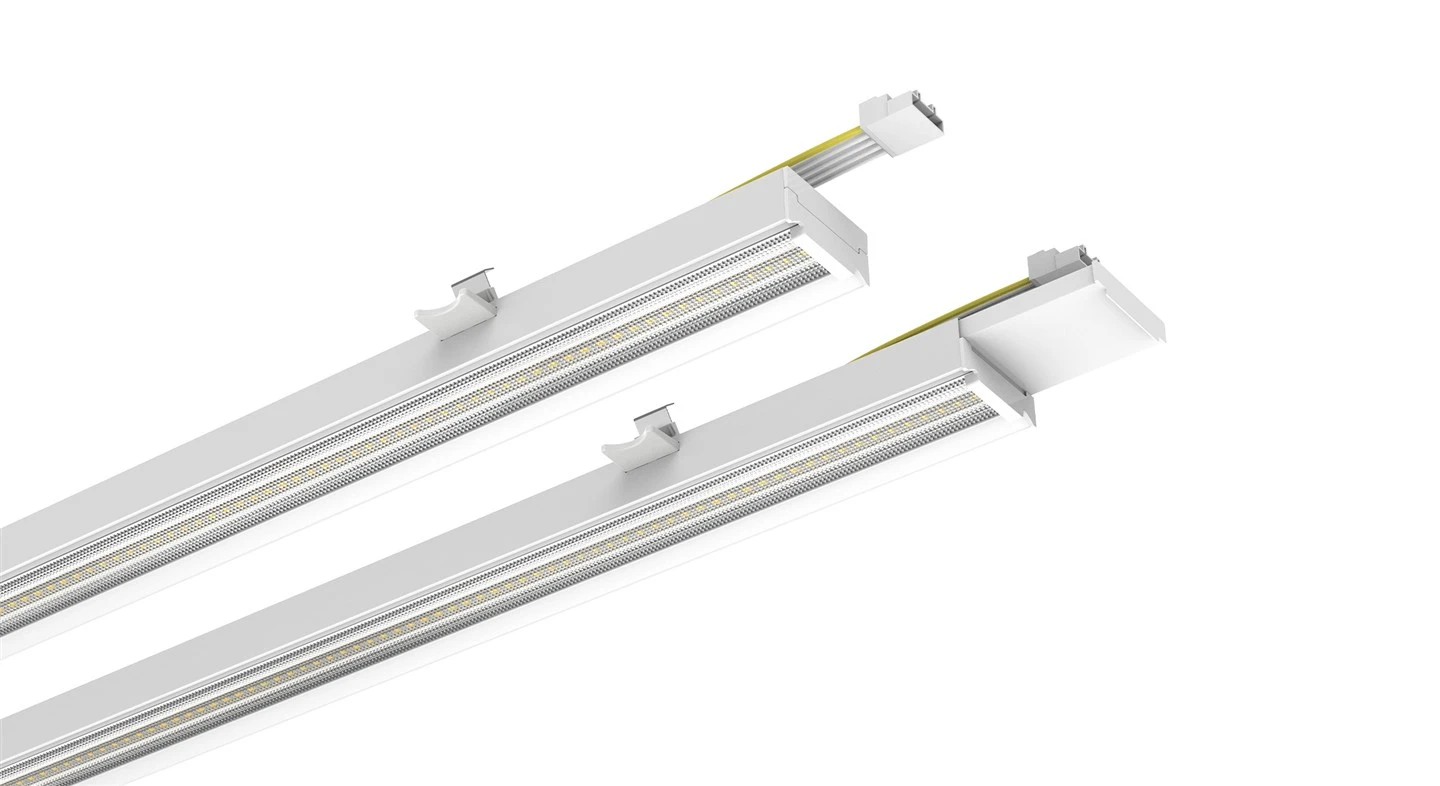

Opteg prismatig F |
RF130-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Opteg prismatig F |
RF130-05W-DT1-60F01 |
40-60W |
Typ.180 |
Teip.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Opteg prismatig F |
RF130-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Opteg prismatig F |
RF130-05W-DT1-70D01 |
35-70W |
Typ.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|
Opteg prismatig F |
RF130-05W-DT1-75F01 |
35-75W |
Typ.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5kg |
6pcs |
|

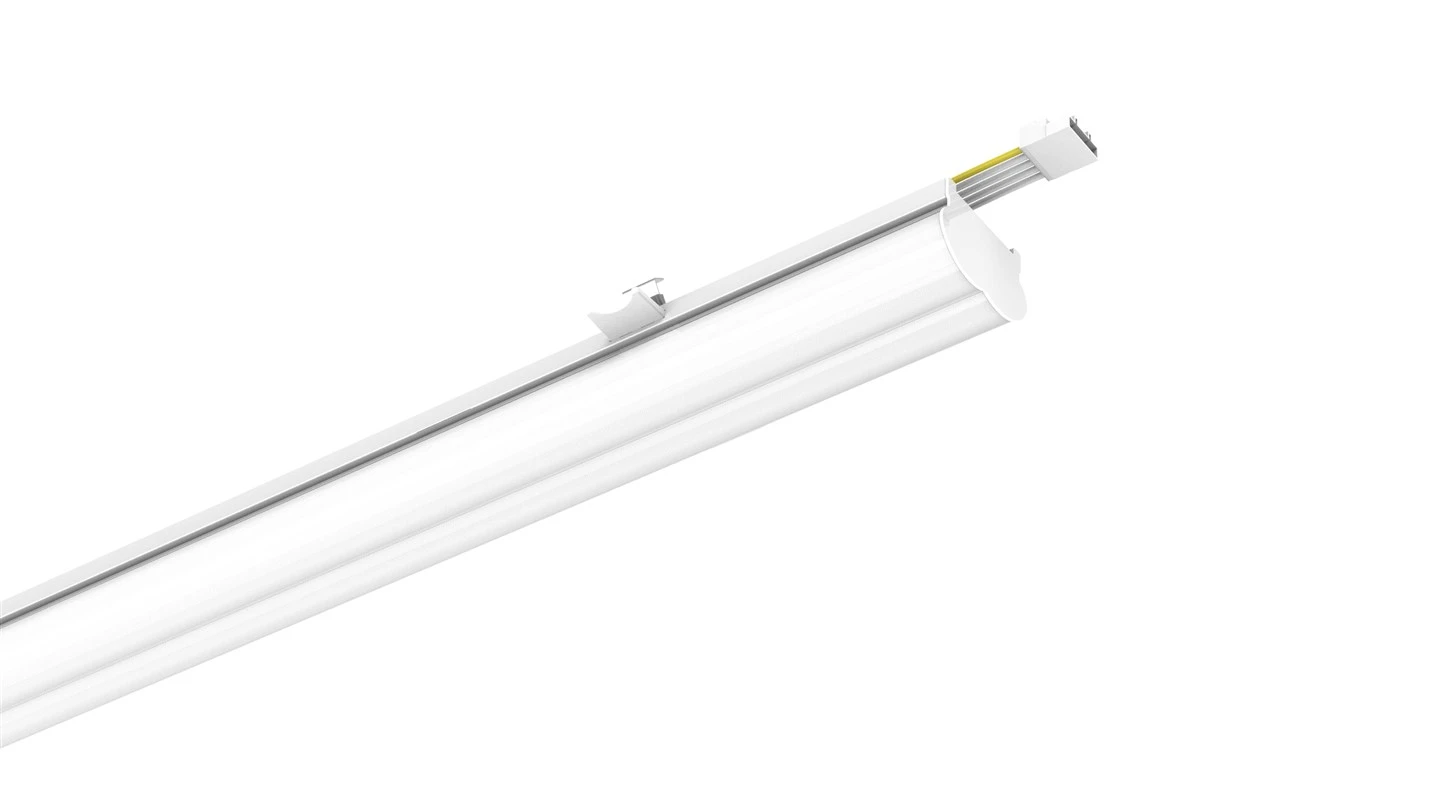

Opal T8 |
RF160-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-60F01 |
40-60W |
Typ.180 |
Teip.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70V01 |
50-70W |
Typ.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70D01 |
35-70W |
Typ.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75F01 |
35-75W |
Typ.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5kg |
6pcs |
